Pod API status code

Pod API status code is a Kubernetes pod-level chaos fault that change the API response status code and optionally api response body through path filtering. This is achieved by starting the proxy server and redirecting the traffic through the proxy server.

A transient proxy (also known as helper pod) is brought up for a chaos duration to intercept the requests made from the target application to another service and elsewhere, and inject chaos accordingly. Target application refers to the application pods calling/sending egress traffic to an endpoint.

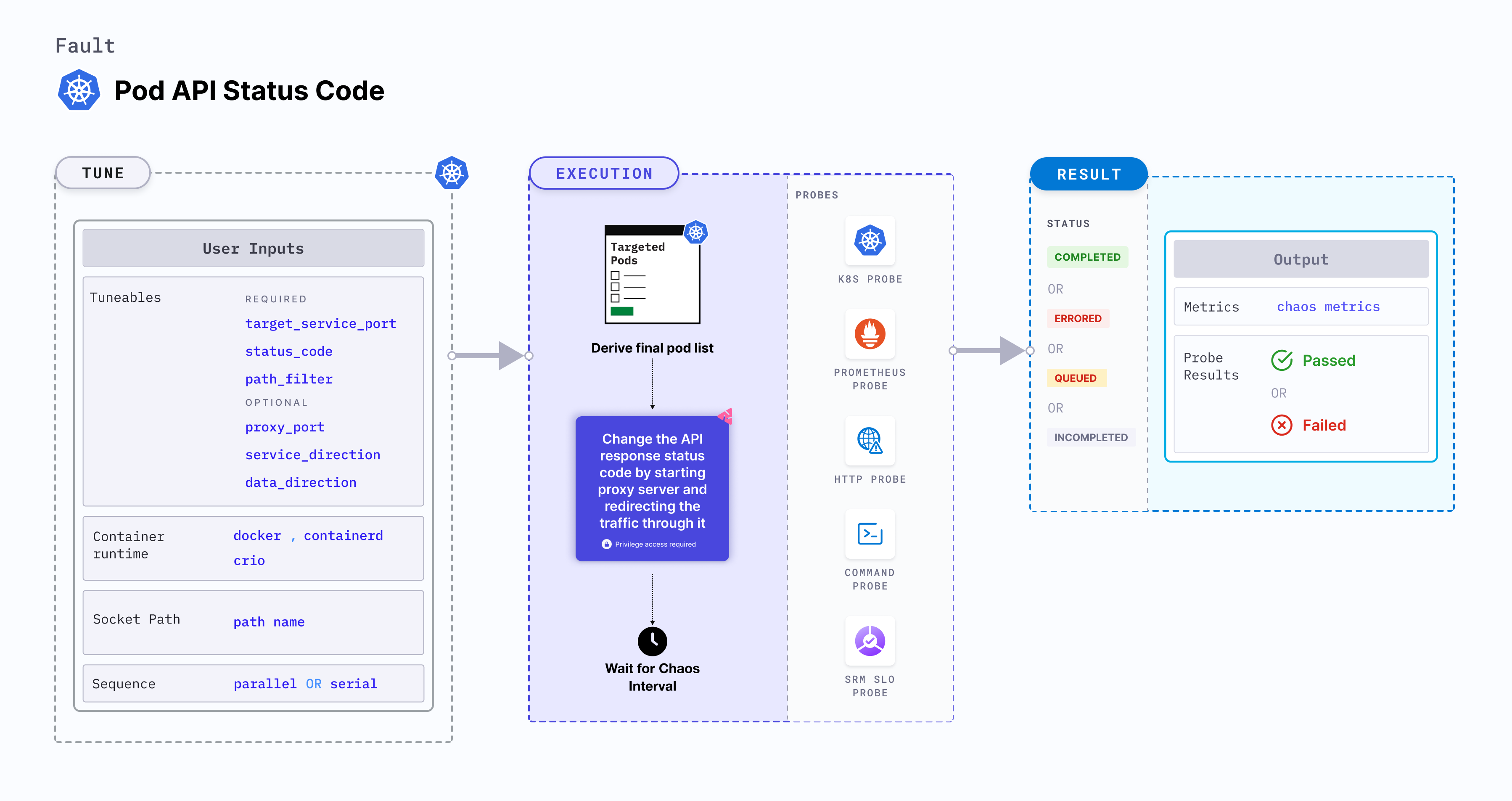

Pod API Status Code

This video provides a step-by-step walkthrough of the execution process for the Pod API Status Code experiment.

Use cases​

Pod API status code:

  • It can be used to test the error handling capabilities of API and client applications. By changing the API response status code to different error codes, such as 400 (Bad Request) or 500 (Internal Server Error), you can evaluate how well your application handles and responds to various error scenarios.
  • Simulates situations where the API may be temporarily unavailable or rate-limited by returning temporary error codes like 503 (Service Unavailable) or 429 (Too Many Requests).
  • It can be used for content filtering, by selectively filter or block certain responses. For example, you can change the status code to 404 (Not Found) for specific paths or patterns, indicating that the requested resource does not exist.

Permissions required​

Below is a sample Kubernetes role that defines the permissions required to execute the fault.

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  namespace: hce
  name: pod-api-status-code
spec:
  definition:
    scope: Cluster # Supports "Namespaced" mode too
permissions:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["create", "delete", "get", "list", "patch", "deletecollection", "update"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "get", "list", "patch", "update"]
  - apiGroups: [""]
    resources: ["pods/log"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["deployments, statefulsets"]
    verbs: ["get", "list"]
  - apiGroups: [""]
    resources: ["replicasets, daemonsets"]
    verbs: ["get", "list"]
  - apiGroups: [""]
    resources: ["chaosEngines", "chaosExperiments", "chaosResults"]
    verbs: ["create", "delete", "get", "list", "patch", "update"]
  - apiGroups: ["batch"]
    resources: ["jobs"]
    verbs: ["create", "delete", "get", "list", "deletecollection"]

Prerequisites​

  • Kubernetes> 1.17
  • The application pods should be in the running state before and after injecting chaos.

Mandatory tunables​

Tunable Description Notes
TARGET_CONTAINER Name of the container subject to changes in the API status code. None. For more information, go to target specific container
NODE_LABEL Node label used to filter the target node if TARGET_NODE environment variable is not set. It is mutually exclusive with the TARGET_NODE environment variable. If both are provided, the fault uses TARGET_NODE. For more information, go to node label.
TARGET_SERVICE_PORT Port of the target service. Defaults to port 80. For more information, go to target service port.
STATUS_CODE Modified status code for the API response. For more information, go to status code .

Optional tunables​

Tunable Description Notes
PATH_FILTER API path or route used for the filtering. Targets all paths if not provided. For more information, go to path filter .
TRANSACTION_PERCENTAGE Percentage of the API requests to be affected. It supports values in range (0,100]. It targets all requests if not provided. For more information, go to transaction percentage .
HEADERS_FILTERS Filters for HTTP request headers accept multiple comma-separated headers in the format key1:value1,key2:value2. For more information, go to header filters.
METHODS The HTTP request method type accepts comma-separated HTTP methods in upper cases, such as "GET,POST". For more information, go to methods.
QUERY_PARAMS HTTP request query parameter filters accept multiple comma-separated query parameters in the format of param1:value1,param2:value2. For more information, go to query params.
SOURCE_HOSTS Includes comma-separated source host names as filters, indicating the origin of the HTTP request. This is specifically relevant to the "ingress" type. For more information, go to source hosts.
SOURCE_IPS This includes comma-separated source IPs as filters, indicating the origin of the HTTP request. This is specifically relevant to the "ingress" type. For more information, go to source ips.
DESTINATION_HOSTS Comma-separated destination host names are used as filters, indicating the hosts on which you call the API. This specification applies exclusively to the "egress" type. For more information, go to destination hosts.
DESTINATION_IPS Comma-separated destination IPs are used as filters, indicating the hosts on which you call the API. This specification applies exclusively to the "egress" type. For more information, go to destination hosts.
RESPONSE_BODY String body to overwrite the HTTP response body. If not provided it will return the original response body Default: empty body. For more information, go to response body.
LIB_IMAGE Image used to inject chaos. Default: harness/chaos-go-runner:main-latest. For more information, go to image used by the helper pod.
PROXY_PORT Port where the proxy listens for requests. Default: 20000. For more information, go to proxy port.
SERVICE_DIRECTION Direction of the flow of control, ingress or egress Default: ingress. For more information, go to service direction .
DATA_DIRECTION API payload type, request or response Default: both. For more information, go to data direction .
DESTINATION_PORTS comma-separated list of the destination service or host ports for which egress traffic should be affected Default: 80,443. For more information, go to destination ports
HTTPS_ENABLED facilitate HTTPS support for both incoming and outgoing traffic Default: false. For more information, go to HTTPS
CA_CERTIFICATES These CA certificates are used by the proxy server to generate the server certificates for the TLS handshake between the target application and the proxy server. These CA certificates must also be added to the target application's root certificate. For more information, go to CA certificates.
SERVER_CERTIFICATES These server certificates are used by the proxy server for the TLS handshake between the target application and the proxy server. The corresponding CA certificates should be loaded as root certificates inside the target application. For more information, go to server certificates.
CLIENT_CERTIFICATES These client certificates are used by the proxy server for the MTLS handshake between the upstream server and the proxy server. The corresponding CA certificates should be loaded as root certificates inside the upstream server. For more information, go to client certificates.
HTTPS_ROOT_CERT_PATH Provide the root CA certificate directory path This setting must be configured if the root CA certificate directory differs from /etc/ssl/certs. Please refer to https://go.dev/src/crypto/x509/root_linux.go to understand the default certificate directory based on various Linux distributions. For more information, go to HTTPS
HTTPS_ROOT_CERT_FILE_NAME Provide the root CA certificate file name This setting must be configured if the root CA certificate file name differs from ca-certificates.crt. Please refer to https://go.dev/src/crypto/x509/root_linux.go to understand the default certificate file names based on various Linux distributions. For more information, go to HTTPS
NETWORK_INTERFACE Network interface used for the proxy. Default: eth0. For more information, go to network interface .
CONTAINER_RUNTIME Container runtime interface for the cluster Default: containerd. Support values: docker, containerd and crio. For more information, go to container runtime .
SOCKET_PATH Path of the containerd or crio or docker socket file. Default: /run/containerd/containerd.sock. For more information, go to socket path .
TOTAL_CHAOS_DURATION Duration of chaos injection (in seconds). Default: 60 s. For more information, go to duration of the chaos .
TARGET_PODS Comma-separated list of application pod names subject to pod HTTP modify body. If not provided, the fault selects target pods randomly based on provided appLabels. For more information, go to target specific pods.
PODS_AFFECTED_PERC Percentage of total pods to target. Provide numeric values. Default: 0 (corresponds to 1 replica). For more information, go to pod affected percentage .
RAMP_TIME Period to wait before and after injecting chaos (in seconds). For example, 30 s. For more information, go to ramp time.
SEQUENCE Sequence of chaos execution for multiple target pods. Default: parallel. Supports serial and parallel. For more information, go to sequence of chaos execution.

Target service port​

Port of the targeted service. Tune it by using the TARGET_SERVICE_PORT environment variable.

The following YAML snippet illustrates the use of this environment variable:

## provide the port of the targeted service
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"
            # provide the status code
            - name: STATUS_CODE
              value: "500"
            - name: PATH_FILTER
              value: '/status'

Status code​

Status code to be modified for the HTTP response. Tune it by using the STATUS_CODE environment variable.

The following YAML snippet illustrates the use of this environment variable:

## modified status code for the http response
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # modified status code for the http response
            - name: STATUS_CODE
              value: "500"
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"
            - name: PATH_FILTER
              value: '/status'

Path filter​

API sub path (or route) to filter the API calls. Tune it by using the PATH_FILTER environment variable.

The following YAML snippet illustrates the use of this environment variable:

## provide api path filter
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # provide the api path filter
            - name: PATH_FILTER
              value: '/status'
            # provide the status code
            - name: STATUS_CODE
              value: "500"
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"

Destination ports​

A comma-separated list of the destination service or host ports for which egress traffic should be affected as a result of chaos testing on the target application. Tune it by using the DESTINATION_PORTS environment variable.

note

It is applicable only for the egress SERVICE_DIRECTION.

The following YAML snippet illustrates the use of this environment variable:

## provide destination ports
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # provide destination ports
            - name: DESTINATION_PORTS
              value: '80,443'
            # provide the api path filter
            - name: PATH_FILTER
              value: '/status'
            # provide the status code
            - name: STATUS_CODE
              value: "500"
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"

HTTPS​

To enable HTTPS support for both incoming and outgoing traffic between the target and the proxy, set the HTTPS_ENABLED field to true. The next step is to configure TLS, for which you can follow one of the ways: Using self-signed certificate or using trusted certificate.

Certificate Configuration for TLS/MTLS​

To establish secure communication between your target application and the chaos proxy server, you need to configure certificates based on your requirements:

  • For TLS (one-way authentication): Configure server-side certificates using either Self-Signed or Trusted Certificates
  • For MTLS (mutual authentication): Configure server-side certificates (Self-Signed or Trusted) + Client Certificates

Using Self-Signed Certificates​

Choose one of the following approaches to configure server-side certificates for TLS:

  1. CA Certificates (Dynamic Certificate Generation)

    Use this approach when you want the proxy to dynamically generate server certificates during the TLS handshake. This is the most flexible option for handling multiple domains.

    What you need:

    • ca.key: The private key used to sign certificates.
    • ca.crt: The Certificate Authority (CA) certificate.

    Prerequisites:

    • Load ca.crt as a trusted root CA certificate in your target application before running the chaos experiment.

    Configuration Steps:

    1. Combine your CA key and certificate into a single PEM file:

      cat ca.key ca.crt > ca.pem

    2. Base64-encode the combined file and add it to the CA_CERTIFICATES environment variable:

      cat ca.pem | base64

    How it works: The proxy dynamically generates server certificates with the appropriate domain names during each TLS handshake. These certificates are signed by the self-signed CA (provided in the CA_CERTIFICATES environment variable) and then presented to the target application.

  2. Server Certificates (Pre-Generated Certificates)

    Use this approach when you want to use pre-generated server certificates with specific domain names. This is ideal when you know all the domains your application will communicate with.

    What you need:

    • server.key: The private key for the server certificate.
    • server.crt: The server certificate signed by your CA.

    Understanding Domain Types:

    • Internal Domains: Organization-managed services (e.g., api.mycompany.internal). These typically include internal microservices and soft dependencies.
    • External Domains: Third-party services (e.g., dynamodb.amazonaws.com, s3.amazonaws.com). These are usually hard dependencies.
    • SAN (Subject Alternative Names): A list of all domain names that the certificate should be valid for. These are specified when creating the Certificate Signing Request (CSR).

    Prerequisites:

    1. Load ca.crt as a trusted root CA certificate in your target application before running the chaos experiment.
    2. Generate server.crt with all necessary domain names (using SAN) and sign it with your CA certificates.

    Configuration Steps:

    1. Combine your server key and certificate into a single PEM file:

      cat server.key server.crt > server.pem

    2. Base64-encode the combined file and add it to the SERVER_CERTIFICATES environment variable:

      cat server.pem | base64

    How it works: The proxy uses the pre-generated server certificates (provided in the SERVER_CERTIFICATES environment variable) during the TLS handshake with your target application.

note

About Intermediate Certificates: Intermediate certificates form a chain of trust between your server certificate and the root CA. They are essential for establishing trust when your certificate is signed by an intermediate CA rather than directly by a root CA. Include them in the certificate chain to ensure proper validation.

Using Trusted Certificates​

When using certificates signed by a publicly trusted Certificate Authority (such as Let's Encrypt, DigiCert, or your organization's trusted CA), you don't need to manually load the CA certificate into your target application, as it's already trusted by default.

  1. For Internal Domains Only

    Use this when your chaos experiments only affect internal, organization-managed services.

    Prerequisites:

    • Generate server certificates that include all internal domain names (using SAN).
    • Sign the certificates using a trusted CA.
    • No need to load the CA certificate in the target application since it's already trusted.

    Configuration Steps:

    1. Combine your server key, certificate, and any intermediate certificates:

      cat server.key server.crt intermediate.crt > server.pem

      Note: Replace intermediate.crt with your actual intermediate certificate file(s). If you have multiple intermediate certificates, include them all in order.

    2. Base64-encode the combined file and add it to the SERVER_CERTIFICATES environment variable:

      cat server.pem | base64

  2. For Both Internal and External Domains

    Use this when your chaos experiments affect both internal services and external third-party services (e.g., AWS, Azure, GCP).

    Prerequisites:

    • Generate server certificates that include both internal and external domain names (using SAN).
    • Sign the certificates using a trusted CA.
    • No need to load the CA certificate in the target application since it's already trusted.

    Configuration Steps:

    1. Combine your server key, certificate, and any intermediate certificates:

      cat server.key server.crt intermediate.crt > server.pem

      Note: Ensure your certificate's SAN includes all domains your application communicates with.

    2. Base64-encode the combined file and add it to the SERVER_CERTIFICATES environment variable:

      cat server.pem | base64

Client Certificates (For MTLS)​

Client certificates are required in addition to server-side certificates (Self-Signed or Trusted) when you need mutual TLS (MTLS). They enable the proxy to authenticate itself to the upstream server, completing the mutual authentication setup.

When to use: Use client certificates when the upstream server requires client certificate authentication for MTLS communication. This applies to both self-signed and trusted certificate setups.

What you need:

  • client.key: The private key for the client certificate.
  • client.crt: The client certificate signed by a CA trusted by the upstream server.
  • Plus: Server-side certificates configured using either Self-Signed Certificates (CA or Server Certificates) OR Trusted Certificates.

Prerequisites:

  1. Configure server-side TLS first using one of the approaches above (Self-Signed or Trusted Certificates).
  2. Ensure the upstream server is configured to require and validate client certificates.
  3. The CA that signed client.crt must be trusted by the upstream server.

Configuration Steps:

  1. Combine your client key and certificate into a single PEM file:

    cat client.key client.crt > client.pem

  2. Base64-encode the combined file and add it to the CLIENT_CERTIFICATES environment variable:

    cat client.pem | base64

How it works:

  • Proxy ↔ Target Application: The proxy uses server-side certificates (CA, Server, or Trusted) for the TLS handshake.
  • Proxy ↔ Upstream Server: The proxy presents client certificates when connecting to the upstream server.
  • Result: Mutual authentication (MTLS) is established, where both the proxy and the upstream server verify each other's identity.
tip

Quick Reference:

For TLS (one-way authentication):

  • Choose Self-Signed Certificates:
    • CA Certificates for dynamic certificate generation with multiple domains
    • Server Certificates for pre-generated certificates with fixed domains
  • OR choose Trusted Certificates for simplified setup with a trusted CA

For MTLS (mutual authentication):

  • Configure server-side certificates using one of the TLS options above
  • Add Client Certificates to enable mutual authentication with the upstream server

Advanced fault tunables​

  • PROXY_PORT: Port where the proxy listens for requests and responses.
  • SERVICE_DIRECTION: Direction of the flow of control, either ingress or egress.
  • DATA_DIRECTION: API payload type, request, or response. It supports request, response, and both values.
  • NETWORK_INTERFACE: Network interface used for the proxy.
  • RESPONSE_BODY: It can be used to override the response body. It should be provided in /<regex>/<replacement> format. If not provided, it will return the original response body.

The following YAML snippet illustrates the use of this environment variable:

# it injects the api modify body fault
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # provide the proxy port
            - name: PROXY_PORT
              value: '20000'
            # provide the connection type
            - name: SERVICE_DIRECTION
              value: 'ingress'
            # provide the payload type
            - name: DATA_DIRECTION
              value: 'both'
            # provide the network interface
            - name: NETWORK_INTERFACE
              value: 'eth0'
            # provide the api path filter
            - name: PATH_FILTER
              value: '/status'
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"
            - name: STATUS_CODE
              value: "500"
            - name: RESPONSE_BODY
              value: '/.+/test'

Advanced filters​

  • HEADERS_FILTERS: The HTTP request headers filters, that accept multiple comma-separated headers in the format of key1:value1,key2:value2.
  • METHODS: The HTTP request method type filters, that accept comma-separated HTTP methods in upper case, that is, GET,POST.
  • QUERY_PARAMS: The HTTP request query parameters filter, accepts multiple comma-separated query parameters in the format of param1:value1,param2:value2.
  • SOURCE_HOSTS: Comma-separated source host names filters, indicating the origin of the HTTP request. This is relevant to the ingress type, specified by SERVICE_DIRECTION environment variable.
  • SOURCE_IPS: Comma-separated source IPs filters, indicating the origin of the HTTP request. This is specifically relevant to the ingress type, specified by SERVICE_DIRECTION environment variable.
  • DESTINATION_HOSTS: Comma-separated destination host names filters, indicating the hosts on which you call the API. This specification applies exclusively to the egress type, specified by SERVICE_DIRECTION environment variable.
  • DESTINATION_IPS: Comma-separated destination IPs filters, indicating the hosts on which you call the API. This specification applies exclusively to the egress type, specified by SERVICE_DIRECTION environment variable.
  • TRANSACTION_PERCENTAGE: The percentage of API requests to be affected, with supported values in the range (0, 100]. If not specified, it targets all requests.

The following YAML snippet illustrates the use of this environment variable:

# it injects the api status code fault
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # provide the headers filters
            - name: HEADERS_FILTERS
              value: 'key1:value1,key2:value2'
            # provide the methods filters
            - name: METHODS
              value: 'GET,POST'
            # provide the query params filters
            - name: QUERY_PARAMS
              value: 'param1:value1,param2:value2'
            # provide the source hosts filters
            - name: SOURCE_HOSTS
              value: 'host1,host2'
            # provide the source ips filters
            - name: SOURCE_IPS
              value: 'ip1,ip2'
            # provide the transaction percentage within (0,100] range
            # for example, it will affect 50% of the total requests
            - name: TRANSACTION_PERCENTAGE
              value: '50'
            # provide the connection type
            - name: SERVICE_DIRECTION
              value: 'ingress'
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"
            - name: STATUS_CODE
              value: "500"

Container runtime and socket path​

The CONTAINER_RUNTIME and SOCKET_PATH environment variable to set the container runtime and socket file path, respectively.

  • CONTAINER_RUNTIME: It supports docker, containerd, and crio runtimes. The default value is containerd.
  • SOCKET_PATH: It contains path of containerd socket file by default(/run/containerd/containerd.sock). For docker, specify path as /var/run/docker.sock. For crio, specify path as /var/run/crio/crio.sock.

The following YAML snippet illustrates the use of these environment variables:

## provide the container runtime and socket file path
apiVersion: litmuschaos.io/v1alpha1
kind: ChaosEngine
metadata:
  name: engine-nginx
spec:
  engineState: "active"
  annotationCheck: "false"
  appinfo:
    appns: "default"
    applabel: "app=nginx"
    appkind: "deployment"
  chaosServiceAccount: litmus-admin
  experiments:
    - name: pod-api-status-code
      spec:
        components:
          env:
            # runtime for the container
            # supports docker, containerd, crio
            - name: CONTAINER_RUNTIME
              value: "containerd"
            # path of the socket file
            - name: SOCKET_PATH
              value: "/run/containerd/containerd.sock"
            # provide the port of the targeted service
            - name: TARGET_SERVICE_PORT
              value: "80"
            # provide the api path filter
            - name: PATH_FILTER
              value: '/status'
            - name: STATUS_CODE
              value: "500"
